ST_lcsDistance

更新时间:

计算基于LCSS(Longest Common Sub Sequence)算法的两条轨迹的距离。

语法

float8 ST_lcsDisatance(trajectory traj1, trajectory traj2, float8 dist, distanceUnit unit default 'M');
float8 ST_lcsDisatance(trajectory traj1, trajectory traj2, float8 dist, interval lag, distanceUnit unit default 'M');

参数

参数名称

描述

traj1

轨迹对象1。

traj2

轨迹对象2。

dist

两点之间的距离容差,单位为米。

lag

两点之间的时间容差。

unit

距离单位,允许以下值:

  • 'M' : 米

  • 'KM': 千米

  • 'D': 度,只允许空间参考为 WGS84(4326)轨迹使用

描述

LCSS用于计算最大的公共子序列。用于判断两个轨迹点是否一致的条件包括空间距离和时间距离。

返回的结果是 1- (LCSS)/ min(leafcount(traj1), leafcount(traj2))。

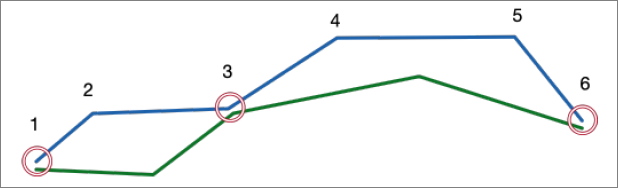

上图中轨迹点1,3,6符合要求,LCSS的数量为3, 结果为1-3/5=0.4。

通常trajectory对象中会有srid值,如果trajectory对象没有srid值,则默认为4326。

示例

With traj AS (
    Select ST_makeTrajectory('STPOINT', 'LINESTRINGZ(114.000528 33.588163 54.87 , 114.000535 33.588235 54.85 , 114.000447 33.588272 54.69 , 114.000348 33.588287 54.73 , 114.000245 33.588305 55.26 , 114.000153 33.588305 55.3)'::geometry,
                             ARRAY['2010-01-01 11:30'::timestamp, '2010-01-01 11:31', '2010-01-01 11:32', '2010-01-01 11:33','2010-01-01 11:34','2010-01-01 11:35'], NULL) a,
           ST_makeTrajectory('STPOINT', 'LINESTRINGZ(114.000529 33.588163 54.87 , 114.000535 33.578235 54.85 , 114.000447 33.578272 54.69 , 114.000348 33.578287 54.73 , 114.000245 33.578305 55.26 , 114.000163 33.588305 55.3)'::geometry,
                             ARRAY['2010-01-01 11:29:58'::timestamp, '2010-01-01 11:31:02', '2010-01-01 11:33', '2010-01-01 11:33:09','2010-01-01 11:34','2010-01-01 11:34:30'], NULL) b)
Select  st_LCSDistance(a, b, 100) from traj;
  st_lcsdistance
-------------------
 0.666666666666667
 (1 row)

 With traj AS (
    Select ST_makeTrajectory('STPOINT', 'LINESTRINGZ(114.000528 33.588163 54.87 , 114.000535 33.588235 54.85 , 114.000447 33.588272 54.69 , 114.000348 33.588287 54.73 , 114.000245 33.588305 55.26 , 114.000153 33.588305 55.3)'::geometry,
                             ARRAY['2010-01-01 11:30'::timestamp, '2010-01-01 11:31', '2010-01-01 11:32', '2010-01-01 11:33','2010-01-01 11:34','2010-01-01 11:35'], NULL) a,
           ST_makeTrajectory('STPOINT', 'LINESTRINGZ(114.000529 33.588163 54.87 , 114.000535 33.578235 54.85 , 114.000447 33.578272 54.69 , 114.000348 33.578287 54.73 , 114.000245 33.578305 55.26 , 114.000163 33.588305 55.3)'::geometry,
                             ARRAY['2010-01-01 11:29:58'::timestamp, '2010-01-01 11:31:02', '2010-01-01 11:33', '2010-01-01 11:34:15','2010-01-01 11:34:50','2010-01-01 11:34:30'], NULL) b)
Select st_LCSDistance(a, b, 100, interval '30 seconds') from traj;
 st_lcsdistance
-------------------
0.666666666666667
(1 row)

With traj AS (
    Select ST_makeTrajectory('STPOINT', 'LINESTRINGZ(114.000528 33.588163 54.87 , 114.000535 33.588235 54.85 , 114.000447 33.588272 54.69 , 114.000348 33.588287 54.73 , 114.000245 33.588305 55.26 , 114.000153 33.588305 55.3)'::geometry,
                             ARRAY['2010-01-01 11:30'::timestamp, '2010-01-01 11:31', '2010-01-01 11:32', '2010-01-01 11:33','2010-01-01 11:34','2010-01-01 11:35'], NULL) a,
           ST_makeTrajectory('STPOINT', 'LINESTRINGZ(114.000529 33.588163 54.87 , 114.000535 33.578235 54.85 , 114.000447 33.578272 54.69 , 114.000348 33.578287 54.73 , 114.000245 33.578305 55.26 , 114.000163 33.588305 55.3)'::geometry,
                             ARRAY['2010-01-01 11:29:58'::timestamp, '2010-01-01 11:31:02', '2010-01-01 11:33', '2010-01-01 11:34:15','2010-01-01 11:34:50','2010-01-01 11:34:30'], NULL) b)
Select st_LCSDistance(a, b, 100, interval '30 seconds', 'M') from traj;
 st_lcsdistance
-------------------
0.666666666666667
(1 row)
